Kohler K-96057-SSL-0 Highcliff Ultra 26 1/8 Inch Floor Mount Top Spud Antimicrobial Flushometer Bowl with Bedpan Lugs - White
Similar Products
Product details
| UPC | 00885612597748 | ||
| Type | Water Closet | ||
| Shape | Elongated | ||
| Features | ADA Compliant / Concealed Trapway / WaterSense Certified | ||
| Installation Type | Floor Mounted | ||
| Theme | Transitional | ||
| Flush Type | Siphon Flush | ||
| Material | Vitreous China | ||
| Bowl Height | Standard | ||
| Finish | White | ||
| Gallons Per Flush | 1 GPF / 1.6 GPF | ||
| Rough-In | 12 Inches | ||
| Profile | Concealed Trapway | ||
| Collection | Highcliff Ultra | ||
| Length | 26.13 | ||
| Width | 14.63 | ||
| Height | 16.63 | ||
|
|||

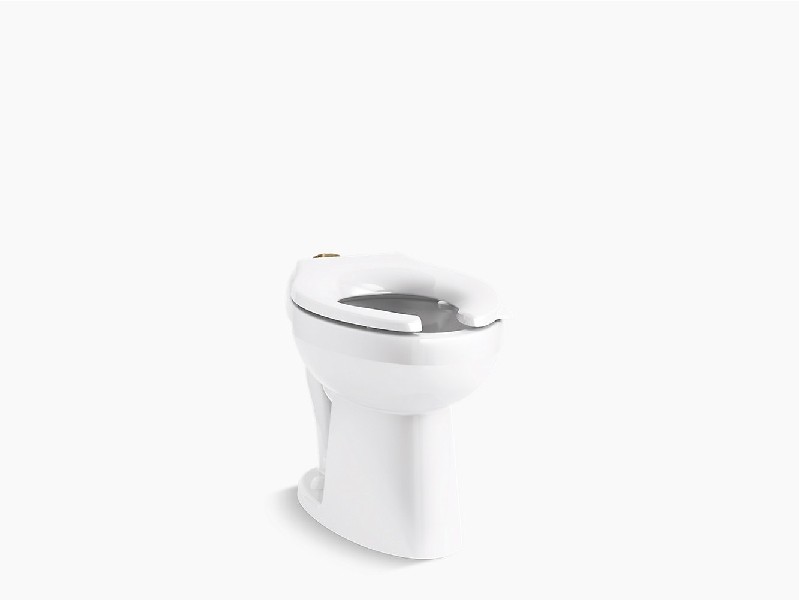

Kohler K-96057-SSL-0 Highcliff Ultra 26 1/8 Inch Floor Mount Top Spud Antimicrobial Flushometer Bowl with Bedpan Lugs - White
This Highcliff Ultra floor-mount flushometer bowl features a revolutionary flushing engine and refined aesthetic design with bedpan lugs. Measuring 16 7/8 Inch to the top of the rim, the Highcliff Ultra meets both ADA and CSA height requirements. The Ultra engine represents a breakthrough in flush performance, tolerating a wide range of water supply conditions found in R&R and new construction. The Highcliff Ultra is listed from 1.1 to1.6 GPF but can operate at 1.0 GPF. It performs well at every flush interval, making it uniquely effective with dual flush valves. It has been proven with all manner of valves (diaphragm, piston, manual and electronic) from a variety of manufacturers.
Features:
- Vitreous China Construction
- Floor Mount Installation
- Elongated bowl
- Bedpan lugs
- Antimicrobial finish inhibits the growth of mold-, mildew-, stain- and odor-causing bacteria on the fixture surface. This product does not protect users against bacteria, viruses, or other disease organisms. Always clean and wash this product thoroughly before and after each use
- Supports static load of 2,500 lbs
- Designed to outperform competitors in bowl cleanliness and plug resistance
- Maximum waste removal
- Engineered for toilet seat cover removal
- Excellent bowl rinse
- Engineered to flush effectively in buildings with low supply pressure and flow
- Replaces High crest K-4302-L, Highcliff K-4368-L and Highline K-4405-L. Height and footprint may vary
- Seat not included
- One year limited warranty
Specifications:
- Water Consumption: 1 GPF - 1.6 GPF
Dimensions:
- Length: 26 1/8 Inch
- Width: 14 5/8 Inch
- Height: 16 5/8 Inch
- Rough-In: 12 Inch
- 1 1/2 Inch top spud
- 10 Inch x 7 Inch water surface
- Fully Glazed Trapway: 2 1/8 Inch
Codes/Standards:
- ASME A112.19.2/CSA B45.1
- DOE - Energy Policy Act 1992
- EPA Water Sense
- California Energy Commission (CEC)
- ADA Compliant
- ICC/ANSI A117.1
- CSA B651
- OBC
