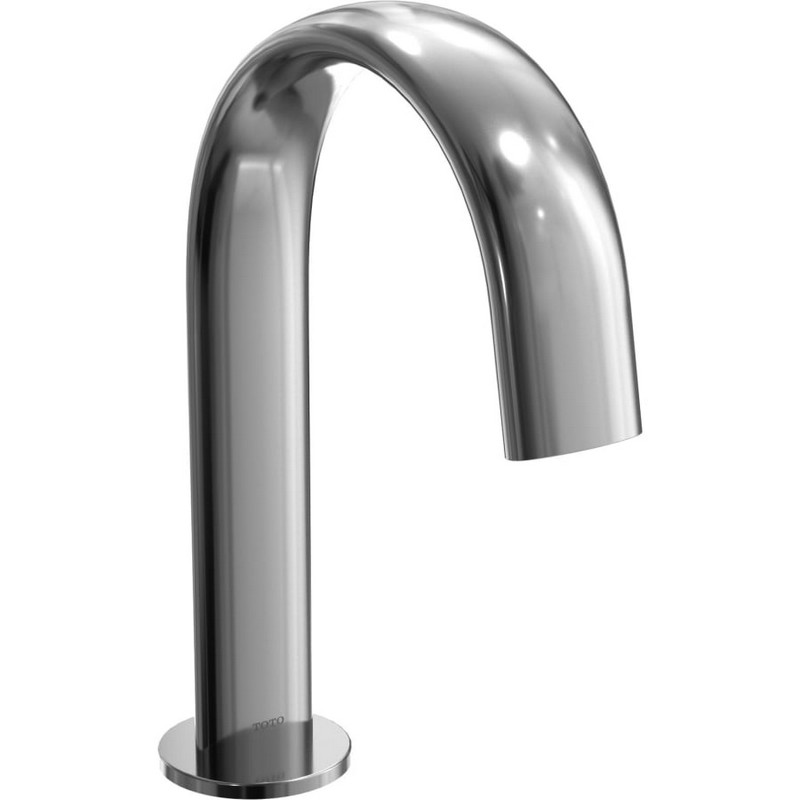

Toto T24S53#CP Gooseneck 9 5/8 Inch 0.5 GPM Deck Mount Single Hole 20 Second Continuous Flow Touchless Bathroom Faucet - Chrome
The TOTO T24S53#CP Gooseneck Touchless Faucet represents a perfect fusion of modern aesthetic design and high-performance commercial-grade technology. This hands-free faucet provides a hygienic solution for any bathroom, utilizing a micro-sensor positioned discreetly underneath the spout head for precise hand detection and consistent water distribution. Designed with water conservation in mind, it offers a sophisticated gooseneck profile that complements contemporary spaces while significantly reducing water consumption through its efficient 0.5 GPM flow regulator. Whether powered by the self-generating ECOPOWER hydropowered system or standard AC power, this faucet delivers reliable performance in both residential and high-traffic commercial environments. The integrated SOFT FLOW technology ensures a strong, satisfying water stream that remains gentle enough to prevent splashing, maintaining a clean and dry lavatory area.
Features
- Choice of self-generating hydropowered ECOPOWER system or AC system
- Micro-sensor positioned underneath the spout head for accurate hand detection
- SOFT FLOW technology providing a strong water flow without backsplash
- Laminar flow for smooth and consistent water distribution
- Durable chrome plated spout body for long-lasting performance
- Equipped with 0.5 GPM flow control and 20-second continuous flow (0.17 gpc)
- Vandal resistant aerator housing
- Kit includes spout body, controller box, and mounting hardware
Required and Optional Accessories (sold separately)
The following items are NOT included with this product and must be purchased separately.
- Required (sold separately): Supply lines
- Optional (sold separately): THP3158#CP - 4 Inch Cover Plate
- Optional (sold separately): THP3159#CP - 8 Inch Cover Plate
- Optional (sold separately): THP3237 - Swivel Coupling
- Optional (sold separately): TLM10 - Hot/Cold Mixing Tee
- Optional (sold separately): TLE05701U - Thermostatic Mixing Valve
- Optional (sold separately): Pressure reducing valve (required if supply pressure is higher than 80 psi)
Specifications
- Spout Material: Brass
- Spout Body Finish: Polished Chrome
- Power Supply (ECOPOWER): Hydropower Generation (self-powering)
- Power Supply (AC): 110-120V AC
- Sensor Type: Self-adjusting micro-sensor
- Inlet Temperature Range: 39-110 degrees Fahrenheit
- Ambient Temperature Range: 32-104 degrees Fahrenheit
- Humidity: Max 90% RH
- Water Condition: Potable municipal or well water
- Installation Type: Deck Mounted
- Number of Faucet Holes: 1
Dimensions
- Overall Height: 9 5/8 inches
- Spout Height: 5 3/4 inches
- Spout Reach: 6 3/8 inches
- Mounting Deck Thickness: 1/4 inch to 2 inches
- Spout Hole Diameter: 1 1/4 inches to 1 3/8 inches
- Sensor Detection Range: 5 1/8 inches to 7 7/8 inches
- Flow Rate: 0.5 GPM
- Water Consumption: 0.17 GPC
- Maximum Water Pressure: 80 psi (static)
- Minimum Water Pressure: 15 psi (flowing)
- Water Supply Connection: G 1/2 compatible with 1/2 NPSM
Codes and Standards
- Meets or exceeds ASME A112.18.1/CSA B125.1
- NSF 372 low-lead compliant
- UL 1951 and CSA C22.2 No.14 and 68 (AC systems only)
- IAPMO(cUPC) certified
- California Energy Commission (CEC) compliant
- Complies with California Green Building Code (CALGreen)
- Complies with City of Los Angeles Water Efficiency Ordinance
- ADA compliant
- Complies with CA Prop 65 warning requirements
- Warranty: Three year limited warranty
Why choose the TOTO T24S53#CP Touchless Faucet?
- The innovative ECOPOWER system uses the flow of water to generate its own electricity, eliminating the need for battery replacements or external power sources.
- Advanced SOFT FLOW technology delivers a luxurious, non-splashing stream that enhances the user experience while keeping the surrounding counter space clean.
- The self-adjusting micro-sensor provides superior reliability and hygiene, ensuring water is only used when needed for maximum efficiency.
- Durable brass construction with a premium chrome finish offers a sophisticated look that withstands the rigors of commercial and residential use.
